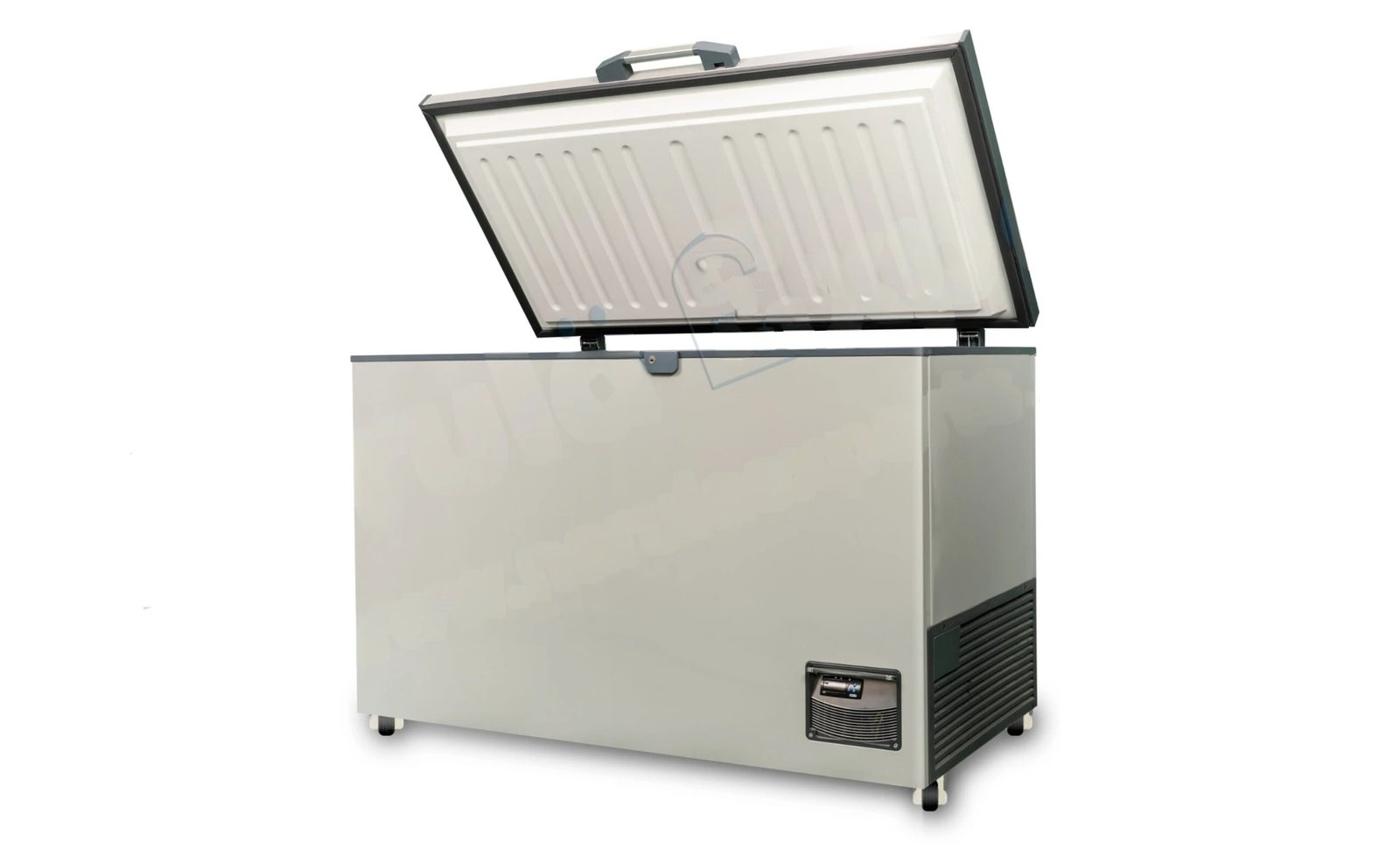

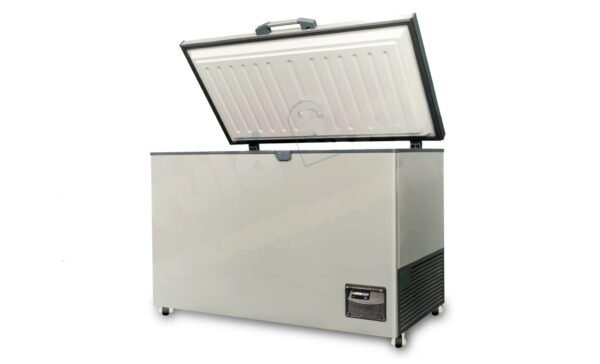

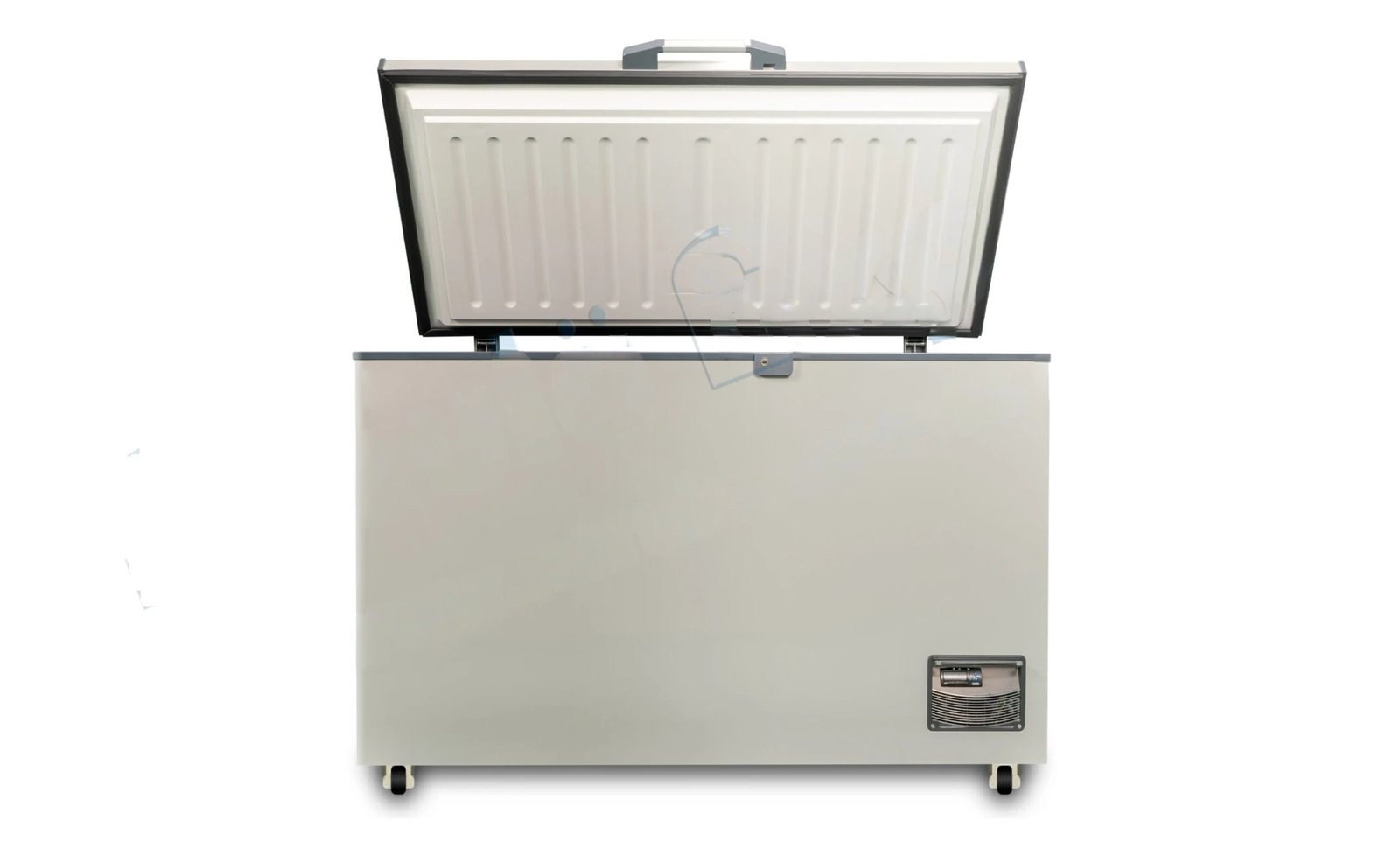

-25°C Laboratory Chest Deep Freezer-100L

NE-25W100

Application:

-25°C Low Temperature Upright Freezer is mainly in order to meet the medical and scientific research and industrial preparation of cold storage under normal circumstances demand. It has large capacity, saving space and precise temperature control, temperature stability, quick cooling, mainly used in the sample access frequently, sample large capacity, users of laboratory space is relatively small.

Temperature Control:

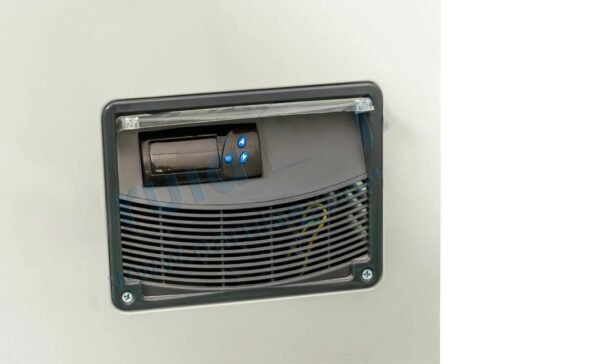

  • Microprocessor control, Large LED display inner temperature clearly, and with easy viewing.
  • The inner temperature can be adjustable at the range of -10°C~-25°C.
  • Lock and password for protection to prevent arbitrary adjustment of operating parameters.

Safety Control:

Malfunction Alarms: High temperature alarm, low temperature alarm, Sensor failure, set the alarm temperature as requirements.

Two Alarming Methods: Buzzer alarming and digital flashing alarming.

Protection function: Power-on delay, Shutdown intervals.

Refrigeration System:

  • Highly efficient famous brand compressor and fan with a high efficient refrigeration effect.
  • Optimized refrigeration technology, low noise, more energy efficient;
  • CFC-Free overall polyurethane foaming insulation.
  • CFC-Free/HC refrigerant.

Ergonomic Design:

  • Safety door lock, preventing unauthorized access.
  • Wide voltage design from 192V to 242V.
  • Heavy duty caster with break.

Technical Data

Model NE-25W100
Technical Data Cabinet Type Chest
Climate Class N
Cooling Type Direct cooling
Defrost Mode Manual
Refrigerant HCFC, R600a
Performance Cooling performance(℃) -25
Temperature Range(℃) -10~-25
Control Controller Microprocessor
Display Large digital display & adjusting keys
Material Interior Aluminum powder coating
Exterior Galvanized steel powder coating
Electrical Data Power Supply(V/Hz) 220/50
Power(W) 100
Dimensions Capacity(L) 100
Net/Gross Weight(approx) 40/55 (kg)
Interior Dimensions(W*D*H) 520×345×615 (mm)
Exterior Dimensions(W*D*H) 700×600×850 (mm)
Packing Dimensions(W*D*H) 800×700×1000 (mm)
Container load (20’/40’/40’H)
Functions High/Low Temperature Y
Sensor Error Y
Lockage Y
Accessories Caster 4
Foot N/A
Test Hole N/A
Baskets/Inner Doors 2/-
Temperature Recorder Optional
Cryo racks Optional
