| Usage/Application | ICU |
| Type | Mechanical |
| Material | ABS |
| Modes Of Ventilation | CMV(VC) |
| Inspiratory time | 0.1-1.0 L/Sec |
| Ie Ratio | 41-110 |
| Total Volume Adult | 100ml-1500ml |
| Low Battery | Battery life less than 15 min |
| Alarm mute | 120 Sec except for Low Supply Gas Pressure |
| Paediatric | 30 ml 250 ml |
| Inspiratory Gas Flow | 0.1 0.9 L/Sec |
| Adjustable Pressure Relief | 20~80 cmH2O |
| Driving Gas | Oxygen / Air |
| Supply Pressure | 280 700 kPa (45 – 100 psi) |
| Battery life for alarms | 60 days of regular use |
| Respiratory Manometer Gauge | (-)20 100 cmH2O pressure |
| Packing Box | L410 x W380 x H500 |
| Weight Incl Box | 6Kg. approx. |
| Adult Bellows | 300 – 1500 ml |
| Paediatric Bellows | 30 – 250 ml |
| Low Airway Pressure | Less Than 5cmH2O for more than 15 Sec (Apnea) |
| High Airway Pressure | Grater Than 65 cm H2O |
| Low Supply Gas Pressure | Less Than 250 Kpa. Separate Pneumatic indicator for low supply gas pressure |

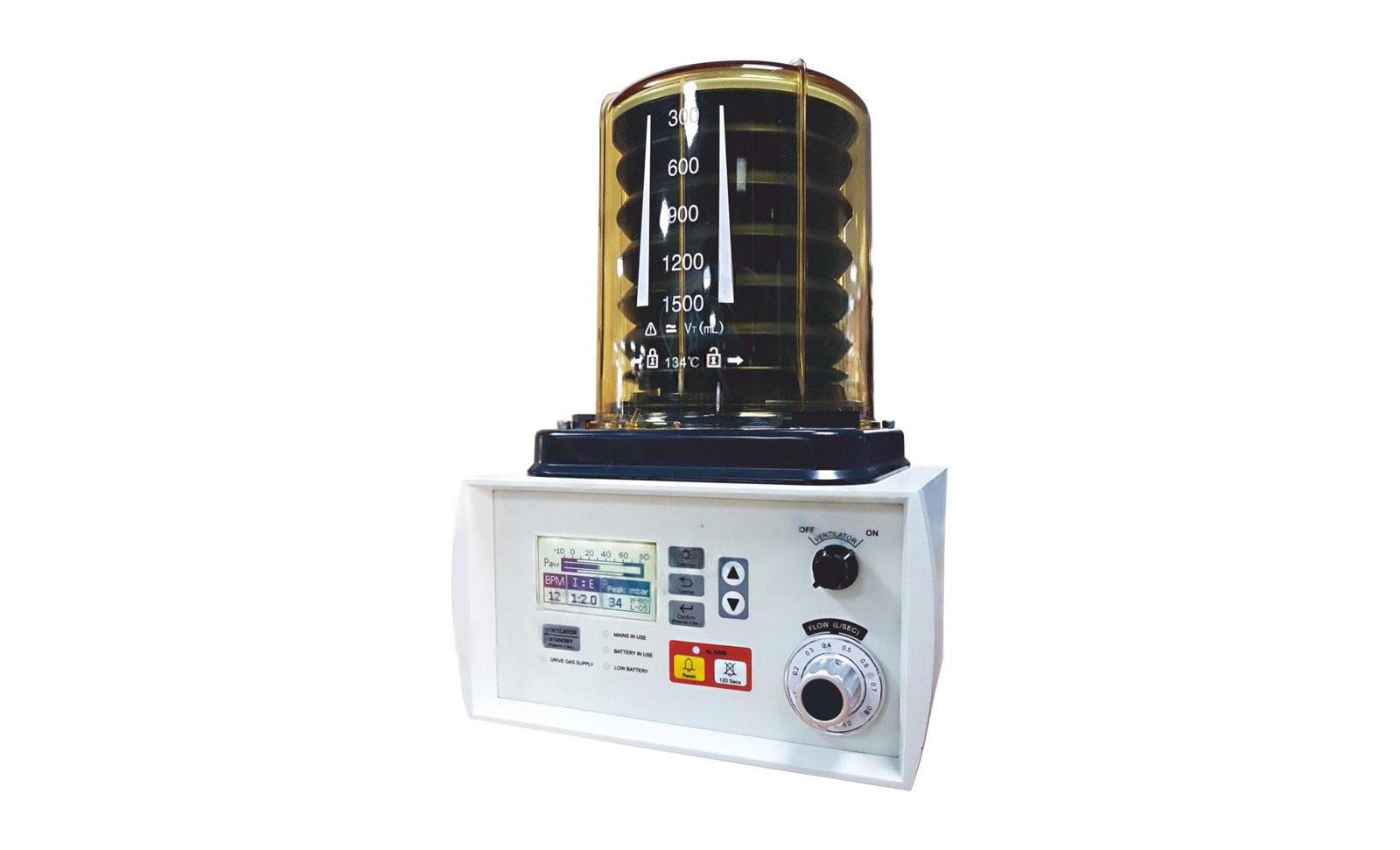

Anaesthesia Ventilator
Features:
- Anaesthesia ventilator is a pneumatically driven ventilator. With easy controls like Inspiratory & expiratory time, Inspiratory Flow and Pressure Limit – It provides an accurate and precise flow to the patient while delivering Anaesthesia. It is an easy to use ventilator with integrated alarms for all the vital parameters.
- It is provided with ascending bellow unit which is easily detachable for cleaning. It can be used in closed circuit anesthesia and also to drive a Bains circuit.
- It can be mounted on side bracket pole unit or on top of Anaesthesia machine. Bellows Assembly can also be mounted separately if required.
- Anaesthesia Ventilator is an electronic time cycled compact ventilator with integrated patient alarms for improved safety. It offers easy handling, comprehensive patient care and superior performance with enhanced efficiency and safety.
