56-1200

Technical Specification

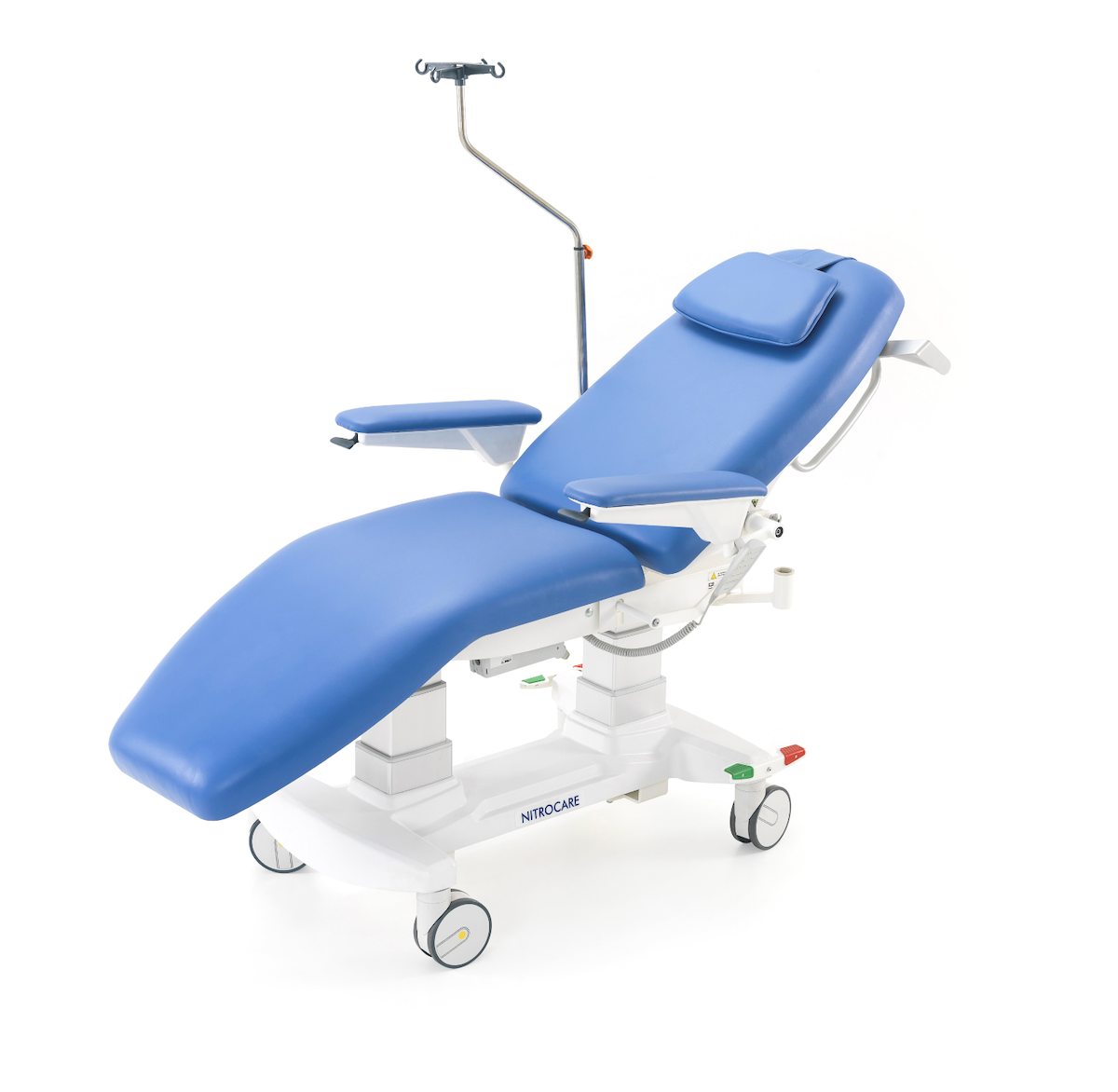

• Three Section Mattress Platform.
• Detachable three segmented mattress made of 60 mm thickness foam
• Backrest, Knee Raise, Trend and Hi-low adjustments are electrically operated.
• Arm rest up-down movement is adjustable with backrest movement
• Five-functional positioning control accessible to the patient
• Arm rest left-right movement is accessible through screw
• CPR handle at both sides for flattening backrest rapidly
• Foot rest adjustment
• Back up battery
• Washable and disinfectable
• Four castors with central/directional brakes
• Main Power Supply 200V-50Hz, 24 DC
• Max. Power Input 500 watt
• Electrical Current Protection Class 2
• Electrical Shock Position Type B
• Dust Proof and water resistant
• IV stand holder
• Role for paper coating
• Hi-Low 865-565 mm
• Back section, seat section 600 mm
• Backrest angle 0-80 degree
• Footrest angle 0-60 degree
• Trend angle 15 degree
• Castors 150 mm diameter central/directional brakes
• Max. load 250 kg.
• Max. Patient Load Capacity 170 kg.
