| Number Of Channels | 12 Channels |
| Dimension | 410mm x 316mm x 136mm |
| Time Constant | Less Than 5s |
| Sensitivity | 2.5, 5, 10, 20mm/mV |
| Weight | 5.2kg (with battery) |
| Emg Filter | 25Hz/35Hz/45Hz/OFF |
| Input Circuit | Defibrillator protection built-in |
| Lead | Standard 12 leads |
| Dfg Filter | 0.05/0.1/0.2/0.5Hz |
| Ac Filter | 50Hz/60Hz/OFF |
| Input Impedance | Greater Than 0.05mA |
| Acquisition Mode | 12-leads ECG simultaneously |
| Paper Style | Rolled or Z-folded |
| Record Paper | 210mm, 216mm paper width |
| Display | 800 x 600 pixels, multicolur, 8.4 Inch LCD |
| Communication Interface | RS232, USB Socket |
| A and D Converter | 12 bits |
| Measurement range | +/-5m Vpp |
| Frequency Response | 0.05 to 150Hz |
| Calibrating Voltage | 1mV +/- 1% |
| Noise Level | Greater Than 15uVp-p |
| Anti Baseline Drift | Automatic |
| Lowpass Filter | 150Hz/100Hz/70Hz |
| Recorder | Thermal Printer |

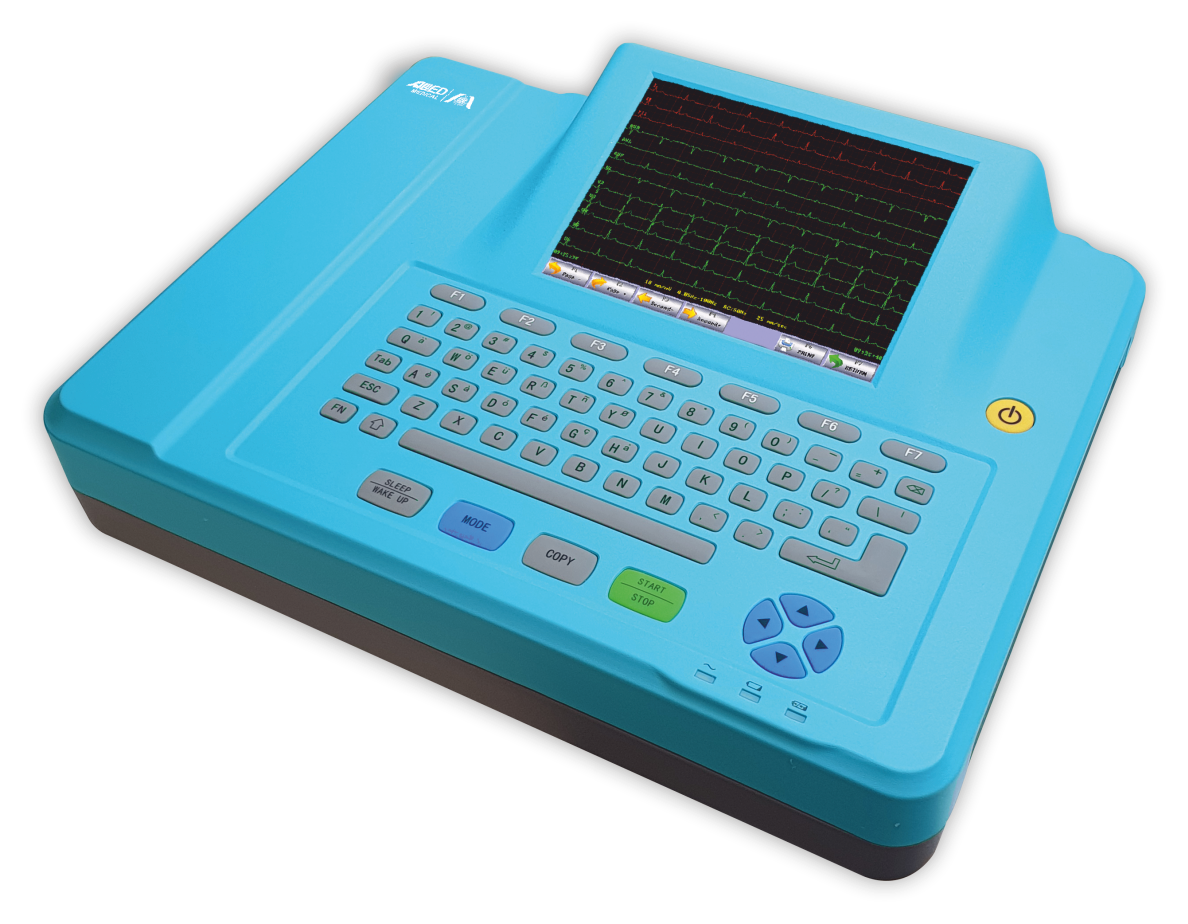

Electrocardiograph Machine
Model No.: 70-1050.12C1
Features:
- Working mode: Auto, Manual & Rhythm
- Lead status display
- 8.4 inch TFT color screen
- Simple & clear keyboard layout, keyboard back light
- 122 types of arrhythmia analysis
- 120 seconds 12-lead waveform review and recording
- Data Transmission and External printer by USB
- Support 210mm rolling paper, Z-folded paper
- Connectivity to ECG management software
- Internal memory for 300 ECG records
- High accuracy digital filter (EMC Filter, AC Filter, Drift Filter, Low-Pass Filter)
- 5.7″ High resolution 12 Channel ECG machine
- In-built recorder
- Built-in battery back-up
- Auto / Manual / Rhythm modes
- Anti-defibrillation and pace-maker detection
- Storage capacity of 300 ECG’s
- USB Connectivity with PC
- Printer Port for external printer
