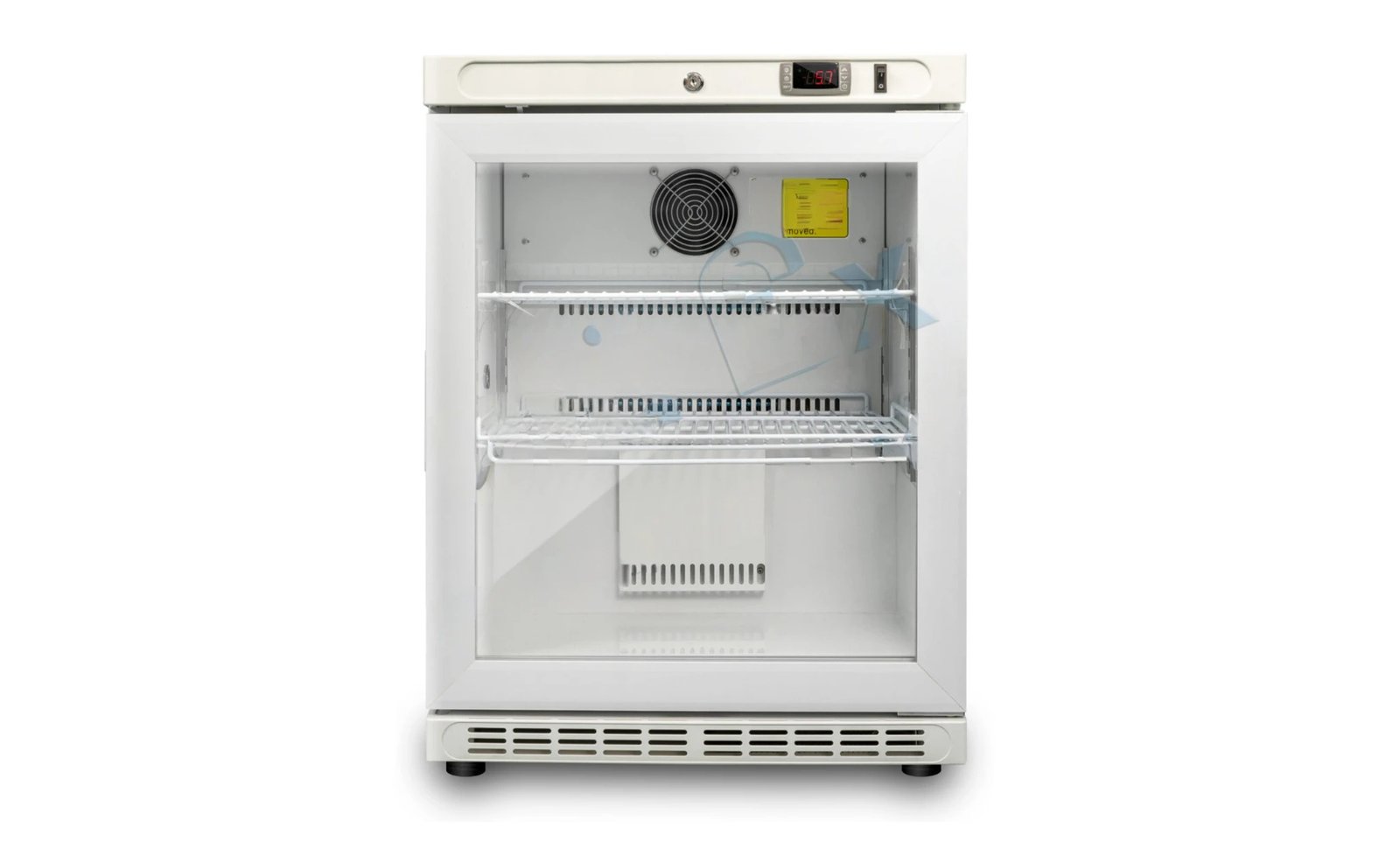

Pharmacy Refrigerator-110L

NE-KYC110G(F)

Application:

Auto Defrost, Forced-Air Circulation Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes. Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.

Temperature Control:

  • Microprocessor control, Large LED display inner temperature clearly, and with easy viewing
  • The inner temperature can be adjustable at the range of 2℃~8℃ with an increment of 0.1.
  • Multiple sensors to display or control the temperature.
  • The Lowest and Highest temperature recorded value record.(Optional)

Safety Control:

Malfunction Alarms: High temperature alarm, Low temperature alarm, Power failure alarm, Door jammed, low voltage of backup battery. Over temperature alarm system, set the alarm
temperature as requirements.

Three Alarming Methods: buzzer alarming, digital flashing alarming and Remote alarm.

Protection Function: power-on delay, Shutdown intervals

Optional

 Controller            LCD display controller with recorder

Refrigeration System:

  • Highly efficient famous brand compressor and fan, with high efficient refrigeration performance.
  • Optimized refrigeration technology, low noise, more energy efficient.
  • CFC-Free overall polyurethane foaming insulation.
  • CFC-Free/HC refrigerant.

Ergonomic Design:

  • Safety door lock, preventing unauthorized access.
  • Wide voltage design from 192V to 242V.
  • Adjustable shelves design.
  • Heavy duty caster with break.

Technical Data

Model NE-KYC110G(F)
Technical Data Cabinet Type Under-counter
Climate Class ST
Cooling Type Forced air cooling
Defrost Mode Auto
Refrigerant HC, R600a
Performance Cooling performance(℃) 4
Temperature Range(℃) 2~8
Control Controller Microprocessor
Display LED
Alarm Audible, Remote
Material Interior Galvanized steel powder coating(white)
Exterior Galvanized steel powder coating(white)
Electrical Data Power Supply(V/Hz) 220/50
Power(W) 80
Dimensions Capacity(L) 110
Net/Gross Weight(approx) 50/58 (kg)
Interior Dimensions(W*D*H) 500×420×570 (mm)
Exterior Dimensions(W*D*H) 600×560×805 (mm)
Packing Dimensions(W*D*H) 660×620×910 (mm)
Container load (20’/40’/40’H) 54/114/171
Functions High/Low Temperature Y
Remote Alarm Y
Power Failure Y
Sensor Failure Y
Low Battery Y
Door Ajar Y
Lockage Y
Inner LED light Y
Accessories Foot Y
Caster N
Test Hole Y
Shelves/Inner Doors 3/-
Foaming Door optional
USB Interface Y
Temperature Recorder optional
