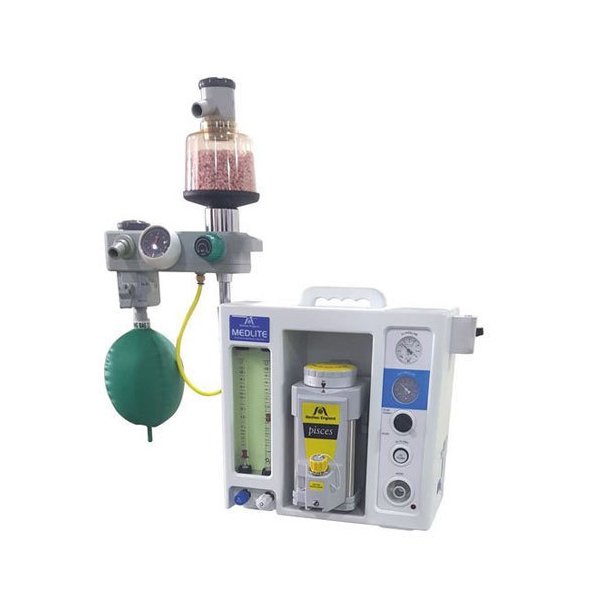

Portable Anaesthesia Machine

Portable Anaesthesia Machine
Portable Anaesthesia Machine - Image 2

Model No.:

Description :

Portable Anaesthesia System is a light-weight, compact yet feature-rich Anaesthesia System. Narula Exports is specifically designed to provide efficient patient care in surgical locations where space is limited, such as clinics, ambulances, disaster, emergencies, veterinary clinics and remote locations. Its intuitive design offers easy handling, comprehensive patient care with enhanced performance, efficiency and safety.



Features:

  • Ease of use and superior functionality
  • Suitable for Adult and Pediatric patients
  • Anti-Hypoxic guard
  • Emergency oxygen flush
  • ON/OFF Switch
  • The fail-proof audible indication of O2 supply pressure failure
  • Automatic Nitrous Oxides shut off in the event of O2 failure
  • Colour coded NIST inlets for piped medical gases
  • Selectatec manifold mounting of Temperature and Flow Compensated type vaporizer
  • Advanced Pediatric and Adult Ventilation with a choice of ventilators (optional)
  • Multiple mounting possibilities
  • Specially designed carry case

Optional Features:

  • Circle Absorber
  • Portable Carry Case
  • Mobile Stand
  • Regulators
  • Basal Flow
  • Wall Mount

Ideal for use:

  • Operating Rooms
  • Veterinary Clinics
  • Ambulance / Mobile Clinics
  • Military Use
  • Disaster Management & Emergencies
  • MRI Rooms

Other Details:

  • 02 failure warning alarm: Self-activated electro-pneumatic audio-visual warning device to indicate the drop in O2 pressure below
  • 2.5 Bar
  • Anti-Hypoxic Guard: Mixing device to proportion the N2O in such a way that minimum of 25% O2 is always delivered from the rotameter.
Material Medical Grade ABS Plastic
Usage/Application Veterinary Use
Positioning Portable
Oxygen Flush Emergency oxygen flush switch at table level to give 35-70 Ltrs/min for emergencies
Weight 10.5 kg
Non Return and Pressure Relief Valve Minimises risk of back flow of gases,blows off when pressure exceeds 125 C H2O
Common Gas Outlet Conveniently located CGO with ISO tapers for 22 & 15mm connections (CGO)
Basal flow with On and off Switch 250 +/- 50 ml basal flow of Oxygen as soon as machine is switched on (optional)
Pipe Line Gas Inlets Non-interchangeable screw threaded (NIST) pipeline inlets
Pressure Gauges Large diameter,color coded gauges fitted at convenient angle for better visibility and clarity.
Selectatec Bracket Single Selectatec Block
Breathing Circuits Bains Circuit
Height 470 mm
Width 400 mm
Depth 250 mm
Temperature Operation 10°C to 40°C, 0 Storage -20°C to 55°C
Humidity Operation Less Than 80%,Storage Less Than 93%
