| Breathing Frequency | 6-30 bpm Adjustable |
| Ie Ratio | Preset (12) |
| Oxygen Concentration | 60 or 100% (Air mix) |
| Minute Volume | With 60% O2, 60 or 100%, 3 to 20 Ltr/min |
| Add on PEEP | 0-20 cmH 2O Optional |
| Pressure Manometer | 20-100cm H2O |
| Noise | >65db |
| Cylinder Time | Less Than 60 mi 3 Ltr. cylinder when fully charged with MV of 6 l/m) |
| Driving Gas Pressure | 280-600 kPa |
| Dimensions | 257 x 135 x 152mm (WxHxD) |
| Weight | 4.4 Kg |
| Storage Temperature | 0°C-50°C |
| Operating Temperature | 0°C-50°C |
| Storage Atmospheric Pressure | 50-110kPa |
| Operating Atmospheric Pressure | 70-110kPa |
| Wall Mount | Optional |

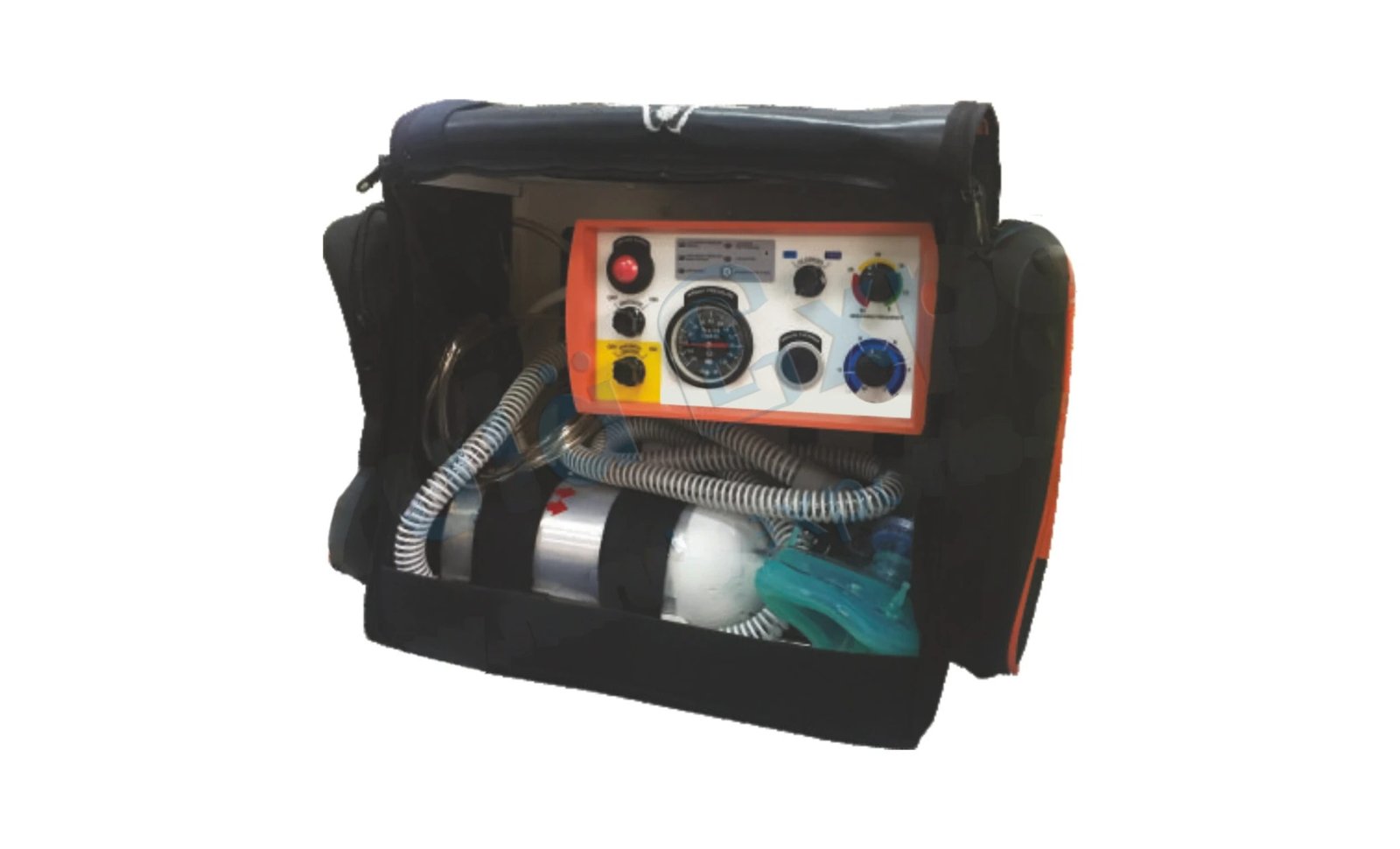

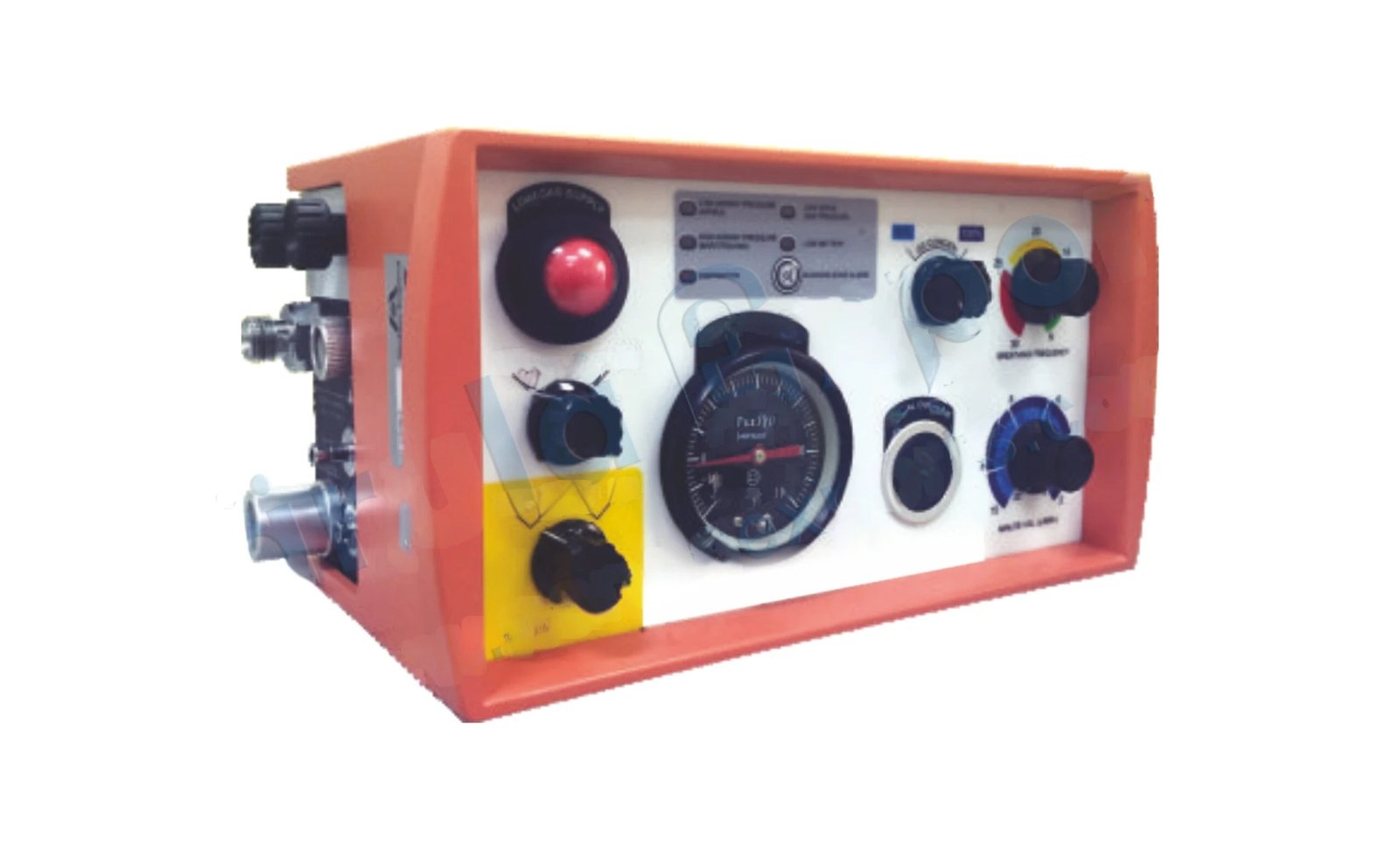

Portable Emergency Ventilator
Model No.: 54-0180
Other Details:
- Driven by pipeline or cylinder operated with a non-return valve: Yes
- Pneumatically Driven Ventilator: Yes
- IPPV Ventilation Mode: Yes
- Adult & Pediatric: Yes
- Manual Override Function: Yes
- Bronchial Suction: Yes
- In-built Battery: Yes
- Electronically Controlled Alarm System: Yes
- Low-Pressure Alarm (Apnea Alarm): Yes
- High-Pressure Alarm (Barotrauma): Yes
- Low Battery Alarm: Yes
- Low Gas Supply Alarm: Yes
- Ventilation Cycle Indication: Yes
- Alarm Silence up to 120 Sec: Yes
Standard Accessories:
- Ventilator Main Unit: 1 Set
- Hose System: 1 Set
- 2/3 Ltr O2 Cylinder with Regulator & Gauge: 1 Set
- FrameWork and Dust Proof Cover
- Breathing Hose: 1.2 Meter
- Mask: 1 Piece
- Suction Tube & Bottle: 1 Set
- Cylinder Filling Attachment: 1 Set
